Example - Digits
In this export example, I use a very short mock autograph with many different operations to show the general flow of the process.
Snapshot

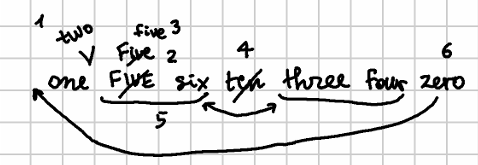

Let us start from this mock autograph, where I numbered the operations to make it easier to read its interpretation:
In our interpretation, we have:
- base text (v0):
one FIVE six ten three four zero
- operations (DSL):
5+["two "
5x4="Five"
37x4="five"
14x4- [*version^:=alpha]
@8x8<>17x10
29x4>[1@zero
1+[" "@zero [*version^:=beta]
These operations can be read as follows:
- v0>v1: insert
two_
beforeFIVE
- v1>v2: replace
FIVE
withFive
- v2>v3: replace
Five
withfive
- v3>v4: delete
ten_
(staged version “alpha”) - v4>v5: swap
five six
withthree four
- v5>v6: move
zero
beforeone
- v6>v7: insert space before
one
(staged version “beta”)
Note that the last 2 operations are grouped because they are semantically one, i.e. adding the space is implicit in moving the word so that we avoid stitching words after moving. Additionally, we might also add another operation to remove the final space after zero is moved, but we omit this to make the example shorter, as a trailing space in the rendition makes no harm.
Versions
The generated versions are:
- v1
one two FIVE six ten three four zero
- v2
one two Five six ten three four zero
- v3
one two five six ten three four zero
- v4
one two five six three four zero
(alpha) - v5
one two three four five six zero
- v6
zeroone two three four five six
- v7
zero one two three four five six
(beta)
The trace features generated by executing the operations are (each character of the referenced text has them):
- at alpha:
- v0:
$anchor
onF
IVE (v0:v1)
- v1:
$seg-out
(v0:v1) fortwo_
$seg-in
(v1:v2) forFIVE
- v2:
$seg-out
(v1:v2) forFive
$seg-in
(v2:v3) forFive
- v3:
$seg-out
(v2:v3) forfive
$seg-in
(v3:v4) forten_
- v4:
$seg-in
(v4:v5) forfive
- v0:
We can summarize these features by wrapping the corresponding text into {}
for deletions and []
for output segments, followed by the target version number:
one [two ]1{FIVE}2{Five}4[five]5 six {ten }4three four zero
Version Alpha
- v4
one two five six three four zero
The alpha version branch is the first child of the root node (as always, ignore operation IDs as these get automatically generated and this document was written in different times). Its dump is reported below: each node, corresponding to one character of the version’s text, is a line; indentation has been removed to make the nodes list more compact. The line contains the node’s Y and X positions, its label, and the data payload attached to that node after a right arrow. Features (selected from the larger set available for each character) are listed with their name and value separated by an equals sign.
+ ⯈ [2.1] → (sub-id=v4, version=alpha)
+ ⯈ [3.1] o → #1: o
+ ⯈ [4.1] n → #2: n
+ ⯈ [5.1] e → #3: e
+ ⯈ [6.1] → #4:
+ ⯈ [7.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [8.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [9.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [10.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [11.1] f → #41: f ($seg-in="5efc466ae9 v4:v5 1", $seg-out="980a28378f v2:v3 1")
+ ⯈ [12.1] i → #42: i ($seg-in="5efc466ae9 v4:v5 2", $seg-out="980a28378f v2:v3 2")
+ ⯈ [13.1] v → #43: v ($seg-in="5efc466ae9 v4:v5 3", $seg-out="980a28378f v2:v3 3")
+ ⯈ [14.1] e → #44: e ($seg-in="5efc466ae9 v4:v5 4", $seg-out="980a28378f v2:v3 4")
+ ⯈ [15.1] → #9: ($seg-in="5efc466ae9 v4:v5 5")
+ ⯈ [16.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6")
+ ⯈ [17.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7")
+ ⯈ [18.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8")
+ ⯈ [19.1] → #13:
+ ⯈ [20.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1")
+ ⯈ [21.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2")
+ ⯈ [22.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3")
+ ⯈ [23.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4")
+ ⯈ [24.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5")
+ ⯈ [25.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6")
+ ⯈ [26.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7")
+ ⯈ [27.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8")
+ ⯈ [28.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9")
+ ⯈ [29.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10")
+ ⯈ [30.1] → #28:
+ ⯈ [31.1] z → #29: z
+ ⯈ [32.1] e → #30: e
+ ⯈ [33.1] r → #31: r
- ■ [34.1] o → #32: o
The number after
#
is the original node ID (source ID) from the GVE chain structure. So, at start each node will have a unique source ID; once we start restoring deleted nodes, it might happen that duplicated nodes share the same source ID.
As you can see, in this linear (single-branch) tree each character is a child node of the preceding character. Note that the branch starts at 2.1, having a couple of features related to the version the branch refers to (v4
, staged as alpha
); the root at level 1 instead is the root of the whole tree, which contains one child branch for each version.
Once the tree has been built, the builder goes on to restore deletions (as we requested in its configuration), from v3 backwards. In case of replacements (due to replacements or swap operations), the builder restores each segment right before the one replacing it. Here you can follow the restore process, step by step.
(1) v3 (delete ten_
): the characters of the deleted segment are restored:
+ ⯈ [2.1] → (sub-id=v4, version=alpha)
+ ⯈ [3.1] o → #1: o
+ ⯈ [4.1] n → #2: n
+ ⯈ [5.1] e → #3: e
+ ⯈ [6.1] → #4:
+ ⯈ [7.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [8.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [9.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [10.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [11.1] f → #41: f ($seg-in="5efc466ae9 v4:v5 1", $seg-out="980a28378f v2:v3 1")
+ ⯈ [12.1] i → #42: i ($seg-in="5efc466ae9 v4:v5 2", $seg-out="980a28378f v2:v3 2")
+ ⯈ [13.1] v → #43: v ($seg-in="5efc466ae9 v4:v5 3", $seg-out="980a28378f v2:v3 3")
+ ⯈ [14.1] e → #44: e ($seg-in="5efc466ae9 v4:v5 4", $seg-out="980a28378f v2:v3 4")
+ ⯈ [15.1] → #9: ($seg-in="5efc466ae9 v4:v5 5")
+ ⯈ [16.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6")
+ ⯈ [17.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7")
+ ⯈ [18.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8")
+ ⯈ [19.1] → #13:
+ ⯈ [20.1] t → #14: t ($del="196de059bf v3:v4 1")
+ ⯈ [21.1] e → #15: e ($del="196de059bf v3:v4 2")
+ ⯈ [22.1] n → #16: n ($del="196de059bf v3:v4 3")
+ ⯈ [23.1] → #17: ($del="196de059bf v3:v4 4")
+ ⯈ [24.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1")
+ ⯈ [25.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2")
+ ⯈ [26.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3")
+ ⯈ [27.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4")
+ ⯈ [28.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5")
+ ⯈ [29.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6")
+ ⯈ [30.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7")
+ ⯈ [31.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8")
+ ⯈ [32.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9")
+ ⯈ [33.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10")
+ ⯈ [34.1] → #28:
+ ⯈ [35.1] z → #29: z
+ ⯈ [36.1] e → #30: e
+ ⯈ [37.1] r → #31: r
- ■ [38.1] o → #32: o
Note that each restored node has a $del
trace feature which marks it as a restoration.
(2) v2 (replace Five
with five
): Five
nodes are restored before five
:
+ ⯈ [2.1] → (sub-id=v4, version=alpha)
+ ⯈ [3.1] o → #1: o
+ ⯈ [4.1] n → #2: n
+ ⯈ [5.1] e → #3: e
+ ⯈ [6.1] → #4:
+ ⯈ [7.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [8.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [9.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [10.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [11.1] F → #37: F ($del="980a28378f v2:v3 1")
+ ⯈ [12.1] i → #38: i ($del="980a28378f v2:v3 2")
+ ⯈ [13.1] v → #39: v ($del="980a28378f v2:v3 3")
+ ⯈ [14.1] e → #40: e ($del="980a28378f v2:v3 4")
+ ⯈ [15.1] f → #41: f ($seg-in="5efc466ae9 v4:v5 1", $seg-out="980a28378f v2:v3 1")
+ ⯈ [16.1] i → #42: i ($seg-in="5efc466ae9 v4:v5 2", $seg-out="980a28378f v2:v3 2")
+ ⯈ [17.1] v → #43: v ($seg-in="5efc466ae9 v4:v5 3", $seg-out="980a28378f v2:v3 3")
+ ⯈ [18.1] e → #44: e ($seg-in="5efc466ae9 v4:v5 4", $seg-out="980a28378f v2:v3 4")
+ ⯈ [19.1] → #9: ($seg-in="5efc466ae9 v4:v5 5")
+ ⯈ [20.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6")
+ ⯈ [21.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7")
+ ⯈ [22.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8")
+ ⯈ [23.1] → #13:
+ ⯈ [24.1] t → #14: t ($del="196de059bf v3:v4 1")
+ ⯈ [25.1] e → #15: e ($del="196de059bf v3:v4 2")
+ ⯈ [26.1] n → #16: n ($del="196de059bf v3:v4 3")
+ ⯈ [27.1] → #17: ($del="196de059bf v3:v4 4")
+ ⯈ [28.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1")
+ ⯈ [29.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2")
+ ⯈ [30.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3")
+ ⯈ [31.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4")
+ ⯈ [32.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5")
+ ⯈ [33.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6")
+ ⯈ [34.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7")
+ ⯈ [35.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8")
+ ⯈ [36.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9")
+ ⯈ [37.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10")
+ ⯈ [38.1] → #28:
+ ⯈ [39.1] z → #29: z
+ ⯈ [40.1] e → #30: e
+ ⯈ [41.1] r → #31: r
- ■ [42.1] o → #32: o
(3) v1 (replace FIVE
with Five
): FIVE
nodes are restored before Five
:
+ ⯈ [2.1] → (sub-id=v4, version=alpha)
+ ⯈ [3.1] o → #1: o
+ ⯈ [4.1] n → #2: n
+ ⯈ [5.1] e → #3: e
+ ⯈ [6.1] → #4:
+ ⯈ [7.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [8.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [9.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [10.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [11.1] F → #5: F ($del="91b036cd5e v1:v2 1")
+ ⯈ [12.1] I → #6: I ($del="91b036cd5e v1:v2 2")
+ ⯈ [13.1] V → #7: V ($del="91b036cd5e v1:v2 3")
+ ⯈ [14.1] E → #8: E ($del="91b036cd5e v1:v2 4")
+ ⯈ [15.1] F → #37: F ($del="980a28378f v2:v3 1")
+ ⯈ [16.1] i → #38: i ($del="980a28378f v2:v3 2")
+ ⯈ [17.1] v → #39: v ($del="980a28378f v2:v3 3")
+ ⯈ [18.1] e → #40: e ($del="980a28378f v2:v3 4")
+ ⯈ [19.1] f → #41: f ($seg-in="5efc466ae9 v4:v5 1", $seg-out="980a28378f v2:v3 1")
+ ⯈ [20.1] i → #42: i ($seg-in="5efc466ae9 v4:v5 2", $seg-out="980a28378f v2:v3 2")
+ ⯈ [21.1] v → #43: v ($seg-in="5efc466ae9 v4:v5 3", $seg-out="980a28378f v2:v3 3")
+ ⯈ [22.1] e → #44: e ($seg-in="5efc466ae9 v4:v5 4", $seg-out="980a28378f v2:v3 4")
+ ⯈ [23.1] → #9: ($seg-in="5efc466ae9 v4:v5 5")
+ ⯈ [24.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6")
+ ⯈ [25.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7")
+ ⯈ [26.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8")
+ ⯈ [27.1] → #13:
+ ⯈ [28.1] t → #14: t ($del="196de059bf v3:v4 1")
+ ⯈ [29.1] e → #15: e ($del="196de059bf v3:v4 2")
+ ⯈ [30.1] n → #16: n ($del="196de059bf v3:v4 3")
+ ⯈ [31.1] → #17: ($del="196de059bf v3:v4 4")
+ ⯈ [32.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1")
+ ⯈ [33.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2")
+ ⯈ [34.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3")
+ ⯈ [35.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4")
+ ⯈ [36.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5")
+ ⯈ [37.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6")
+ ⯈ [38.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7")
+ ⯈ [39.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8")
+ ⯈ [40.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9")
+ ⯈ [41.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10")
+ ⯈ [42.1] → #28:
+ ⯈ [43.1] z → #29: z
+ ⯈ [44.1] e → #30: e
+ ⯈ [45.1] r → #31: r
- ■ [46.1] o → #32: o
At this stage, a merge filter is applied which groups together all the nodes with the same set of relevant features. The result is a more compact v4 branch:
+ ⯈ [2.1] #1 → (sub-id=v4, version=alpha)
+ ⯈ [3.1] one #2 → #1: one
+ ⯈ [4.1] two #3 → #33: two ($seg-out="90357b5eb5 v0:v1 1", $seg-out="90357b5eb5 v0:v1 2", $seg-out="90357b5eb5 v0:v1 3", $seg-out="90357b5eb5 v0:v1 4")
+ ⯈ [5.1] FIVE #4 → #5: FIVE ($del="d2df0b1950 v1:v2 1", $del="d2df0b1950 v1:v2 2", $del="d2df0b1950 v1:v2 3", $del="d2df0b1950 v1:v2 4")
+ ⯈ [6.1] Five #5 → #37: Five ($del="28944ea325 v2:v3 1", $del="28944ea325 v2:v3 2", $del="28944ea325 v2:v3 3", $del="28944ea325 v2:v3 4")
+ ⯈ [7.1] five #6 → #41: five ($seg-in="0bed4d216e v4:v5 1", $seg-out="28944ea325 v2:v3 1", $seg-in="0bed4d216e v4:v5 2", $seg-out="28944ea325 v2:v3 2", $seg-in="0bed4d216e v4:v5 3", $seg-out="28944ea325 v2:v3 3", $seg-in="0bed4d216e v4:v5 4", $seg-out="28944ea325 v2:v3 4")
+ ⯈ [8.1] six #7 → #9: six ($seg-in="0bed4d216e v4:v5 5", $seg-in="0bed4d216e v4:v5 6", $seg-in="0bed4d216e v4:v5 7", $seg-in="0bed4d216e v4:v5 8")
+ ⯈ [9.1] ten #8 → #14: ten ($del="e551a938f8 v3:v4 1", $del="e551a938f8 v3:v4 2", $del="e551a938f8 v3:v4 3", $del="e551a938f8 v3:v4 4")
- ■ [10.1] three four zero #9 → #18: three four zero ($seg2-in="0bed4d216e v4:v5 1", $seg2-in="0bed4d216e v4:v5 2", $seg2-in="0bed4d216e v4:v5 3", $seg2-in="0bed4d216e v4:v5 4", $seg2-in="0bed4d216e v4:v5 5", $seg2-in="0bed4d216e v4:v5 6", $seg2-in="0bed4d216e v4:v5 7", $seg2-in="0bed4d216e v4:v5 8", $seg2-in="0bed4d216e v4:v5 9", $seg2-in="0bed4d216e v4:v5 10")
As you can see, the segmentation for v4 text one two five six three four zero
is now:
one
two_
(inserted)FIVE
(deleted)Five
(deleted)five
(inserted)_six_
ten_
(deleted)three four zero
At this stage, version 4 branch is complete and ready for its rendition. When later the branch passes to the Saba 1919 renderer, it gets materialized into this TEI fragment (the renderer was configured to output trace comments, and I manually indented the result to make it more readable):
<rdg>
<mod n="v4">
<!--⯈ [3.1] one #2-->
one
<!--⯈ [4.1] two #3-->
<ins source="70793a80b7 5×0+["two "">two </ins>
<!--⯈ [5.1] FIVE #4-->
<subst source="8fa7bdee36 5×4="Five"">
<del source="8fa7bdee36 5×4="Five"">FIVE</del>
<ins source="8fa7bdee36 5×4="Five"">
<!--⯈ [6.1] Five #5-->
<subst source="13c31a54b5 37×4="five"">
<del source="13c31a54b5 37×4="five"">Five</del>
<ins source="13c31a54b5 37×4="five""><!--⯈ [7.1] five #6-->five</ins>
</subst>
<!--⯈ [8.1] six #7-->
</ins>
</subst>
six
<!--⯈ [9.1] ten #8-->
<del source="9f6f8e6b47 14×4- [*version^:=alpha]">ten </del>
<!--■ [10.1] three four zero #9-->three four zero</mod>
</rdg>
As the renderer has been configured to treat v7 (beta) as the preferred one, v4 here is wrapped inside an
rdg
element. The preferred version instead will be wrapped inside alem
element.
Version Beta
- v7
zero one two three four five six
The branch built from v7 (zero one two three four five six_
) is:
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="cbdd5bf924 v5:v6 1", $seg-out="cbdd5bf924 v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="cbdd5bf924 v5:v6 2", $seg-out="cbdd5bf924 v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="cbdd5bf924 v5:v6 3", $seg-out="cbdd5bf924 v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="cbdd5bf924 v5:v6 4", $seg-out="cbdd5bf924 v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="27140c3f3c v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="cbdd5bf924 v5:v6", $anchor="27140c3f3c v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [16.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1", $seg-out="5efc466ae9 v4:v5 1")
+ ⯈ [17.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2", $seg-out="5efc466ae9 v4:v5 2")
+ ⯈ [18.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3", $seg-out="5efc466ae9 v4:v5 3")
+ ⯈ [19.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4", $seg-out="5efc466ae9 v4:v5 4")
+ ⯈ [20.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5", $seg-out="5efc466ae9 v4:v5 5")
+ ⯈ [21.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6", $seg-out="5efc466ae9 v4:v5 6")
+ ⯈ [22.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7", $seg-out="5efc466ae9 v4:v5 7")
+ ⯈ [23.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8", $seg-out="5efc466ae9 v4:v5 8")
+ ⯈ [24.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9", $seg-out="5efc466ae9 v4:v5 9")
+ ⯈ [25.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10", $seg-out="5efc466ae9 v4:v5 10")
+ ⯈ [26.1] → #13:
+ ⯈ [27.1] f → #41: f ($seg-out="980a28378f v2:v3 1", $seg-in="5efc466ae9 v4:v5 1", $seg2-out="5efc466ae9 v4:v5 1")
+ ⯈ [28.1] i → #42: i ($seg-out="980a28378f v2:v3 2", $seg-in="5efc466ae9 v4:v5 2", $seg2-out="5efc466ae9 v4:v5 2")
+ ⯈ [29.1] v → #43: v ($seg-out="980a28378f v2:v3 3", $seg-in="5efc466ae9 v4:v5 3", $seg2-out="5efc466ae9 v4:v5 3")
+ ⯈ [30.1] e → #44: e ($seg-out="980a28378f v2:v3 4", $seg-in="5efc466ae9 v4:v5 4", $seg2-out="5efc466ae9 v4:v5 4")
+ ⯈ [31.1] → #9: ($seg-in="5efc466ae9 v4:v5 5", $seg2-out="5efc466ae9 v4:v5 5")
+ ⯈ [32.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6", $seg2-out="5efc466ae9 v4:v5 6")
+ ⯈ [33.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7", $seg2-out="5efc466ae9 v4:v5 7")
+ ⯈ [34.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8", $seg2-out="5efc466ae9 v4:v5 8")
- ■ [35.1] → #28:
At this stage the builder starts restoring deletions, from v6 backwards (v6 is skipped because it has no deletion):
(1) v5 (move zero
): zero
is restored at the end:
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="cbdd5bf924 v5:v6 1", $seg-out="cbdd5bf924 v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="cbdd5bf924 v5:v6 2", $seg-out="cbdd5bf924 v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="cbdd5bf924 v5:v6 3", $seg-out="cbdd5bf924 v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="cbdd5bf924 v5:v6 4", $seg-out="cbdd5bf924 v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="27140c3f3c v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="cbdd5bf924 v5:v6", $anchor="27140c3f3c v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [16.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1", $seg-out="5efc466ae9 v4:v5 1")
+ ⯈ [17.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2", $seg-out="5efc466ae9 v4:v5 2")
+ ⯈ [18.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3", $seg-out="5efc466ae9 v4:v5 3")
+ ⯈ [19.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4", $seg-out="5efc466ae9 v4:v5 4")
+ ⯈ [20.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5", $seg-out="5efc466ae9 v4:v5 5")
+ ⯈ [21.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6", $seg-out="5efc466ae9 v4:v5 6")
+ ⯈ [22.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7", $seg-out="5efc466ae9 v4:v5 7")
+ ⯈ [23.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8", $seg-out="5efc466ae9 v4:v5 8")
+ ⯈ [24.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9", $seg-out="5efc466ae9 v4:v5 9")
+ ⯈ [25.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10", $seg-out="5efc466ae9 v4:v5 10")
+ ⯈ [26.1] → #13:
+ ⯈ [27.1] f → #41: f ($seg-out="980a28378f v2:v3 1", $seg-in="5efc466ae9 v4:v5 1", $seg2-out="5efc466ae9 v4:v5 1")
+ ⯈ [28.1] i → #42: i ($seg-out="980a28378f v2:v3 2", $seg-in="5efc466ae9 v4:v5 2", $seg2-out="5efc466ae9 v4:v5 2")
+ ⯈ [29.1] v → #43: v ($seg-out="980a28378f v2:v3 3", $seg-in="5efc466ae9 v4:v5 3", $seg2-out="5efc466ae9 v4:v5 3")
+ ⯈ [30.1] e → #44: e ($seg-out="980a28378f v2:v3 4", $seg-in="5efc466ae9 v4:v5 4", $seg2-out="5efc466ae9 v4:v5 4")
+ ⯈ [31.1] → #9: ($seg-in="5efc466ae9 v4:v5 5", $seg2-out="5efc466ae9 v4:v5 5")
+ ⯈ [32.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6", $seg2-out="5efc466ae9 v4:v5 6")
+ ⯈ [33.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7", $seg2-out="5efc466ae9 v4:v5 7")
+ ⯈ [34.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8", $seg2-out="5efc466ae9 v4:v5 8")
+ ⯈ [35.1] → #28:
+ ⯈ [36.1] z → #29: z ($del="cbdd5bf924 v5:v6 1")
+ ⯈ [37.1] e → #30: e ($del="cbdd5bf924 v5:v6 2")
+ ⯈ [38.1] r → #31: r ($del="cbdd5bf924 v5:v6 3")
- ■ [39.1] o → #32: o ($del="cbdd5bf924 v5:v6 4")
(2) v4 (swap five six
with three four
): a swap implies two restorations: first, five six
before three four
:
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="cbdd5bf924 v5:v6 1", $seg-out="cbdd5bf924 v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="cbdd5bf924 v5:v6 2", $seg-out="cbdd5bf924 v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="cbdd5bf924 v5:v6 3", $seg-out="cbdd5bf924 v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="cbdd5bf924 v5:v6 4", $seg-out="cbdd5bf924 v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="27140c3f3c v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="cbdd5bf924 v5:v6", $anchor="27140c3f3c v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [16.1] f → #41: f ($del="5efc466ae9 v4:v5 1")
+ ⯈ [17.1] i → #42: i ($del="5efc466ae9 v4:v5 2")
+ ⯈ [18.1] v → #43: v ($del="5efc466ae9 v4:v5 3")
+ ⯈ [19.1] e → #44: e ($del="5efc466ae9 v4:v5 4")
+ ⯈ [20.1] → #9: ($del="5efc466ae9 v4:v5 5")
+ ⯈ [21.1] s → #10: s ($del="5efc466ae9 v4:v5 6")
+ ⯈ [22.1] i → #11: i ($del="5efc466ae9 v4:v5 7")
+ ⯈ [23.1] x → #12: x ($del="5efc466ae9 v4:v5 8")
+ ⯈ [24.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1", $seg-out="5efc466ae9 v4:v5 1")
+ ⯈ [25.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2", $seg-out="5efc466ae9 v4:v5 2")
+ ⯈ [26.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3", $seg-out="5efc466ae9 v4:v5 3")
+ ⯈ [27.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4", $seg-out="5efc466ae9 v4:v5 4")
+ ⯈ [28.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5", $seg-out="5efc466ae9 v4:v5 5")
+ ⯈ [29.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6", $seg-out="5efc466ae9 v4:v5 6")
+ ⯈ [30.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7", $seg-out="5efc466ae9 v4:v5 7")
+ ⯈ [31.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8", $seg-out="5efc466ae9 v4:v5 8")
+ ⯈ [32.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9", $seg-out="5efc466ae9 v4:v5 9")
+ ⯈ [33.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10", $seg-out="5efc466ae9 v4:v5 10")
+ ⯈ [34.1] → #13:
+ ⯈ [35.1] f → #41: f ($seg-out="980a28378f v2:v3 1", $seg-in="5efc466ae9 v4:v5 1", $seg2-out="5efc466ae9 v4:v5 1")
+ ⯈ [36.1] i → #42: i ($seg-out="980a28378f v2:v3 2", $seg-in="5efc466ae9 v4:v5 2", $seg2-out="5efc466ae9 v4:v5 2")
+ ⯈ [37.1] v → #43: v ($seg-out="980a28378f v2:v3 3", $seg-in="5efc466ae9 v4:v5 3", $seg2-out="5efc466ae9 v4:v5 3")
+ ⯈ [38.1] e → #44: e ($seg-out="980a28378f v2:v3 4", $seg-in="5efc466ae9 v4:v5 4", $seg2-out="5efc466ae9 v4:v5 4")
+ ⯈ [39.1] → #9: ($seg-in="5efc466ae9 v4:v5 5", $seg2-out="5efc466ae9 v4:v5 5")
+ ⯈ [40.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6", $seg2-out="5efc466ae9 v4:v5 6")
+ ⯈ [41.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7", $seg2-out="5efc466ae9 v4:v5 7")
+ ⯈ [42.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8", $seg2-out="5efc466ae9 v4:v5 8")
+ ⯈ [43.1] → #28:
+ ⯈ [44.1] z → #29: z ($del="cbdd5bf924 v5:v6 1")
+ ⯈ [45.1] e → #30: e ($del="cbdd5bf924 v5:v6 2")
+ ⯈ [46.1] r → #31: r ($del="cbdd5bf924 v5:v6 3")
- ■ [47.1] o → #32: o ($del="cbdd5bf924 v5:v6 4")
then, restoring three four
before five six
(not the restored one):
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="cbdd5bf924 v5:v6 1", $seg-out="cbdd5bf924 v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="cbdd5bf924 v5:v6 2", $seg-out="cbdd5bf924 v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="cbdd5bf924 v5:v6 3", $seg-out="cbdd5bf924 v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="cbdd5bf924 v5:v6 4", $seg-out="cbdd5bf924 v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="27140c3f3c v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="cbdd5bf924 v5:v6", $anchor="27140c3f3c v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [16.1] f → #41: f ($del="5efc466ae9 v4:v5 1")
+ ⯈ [17.1] i → #42: i ($del="5efc466ae9 v4:v5 2")
+ ⯈ [18.1] v → #43: v ($del="5efc466ae9 v4:v5 3")
+ ⯈ [19.1] e → #44: e ($del="5efc466ae9 v4:v5 4")
+ ⯈ [20.1] → #9: ($del="5efc466ae9 v4:v5 5")
+ ⯈ [21.1] s → #10: s ($del="5efc466ae9 v4:v5 6")
+ ⯈ [22.1] i → #11: i ($del="5efc466ae9 v4:v5 7")
+ ⯈ [23.1] x → #12: x ($del="5efc466ae9 v4:v5 8")
+ ⯈ [24.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1", $seg-out="5efc466ae9 v4:v5 1")
+ ⯈ [25.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2", $seg-out="5efc466ae9 v4:v5 2")
+ ⯈ [26.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3", $seg-out="5efc466ae9 v4:v5 3")
+ ⯈ [27.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4", $seg-out="5efc466ae9 v4:v5 4")
+ ⯈ [28.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5", $seg-out="5efc466ae9 v4:v5 5")
+ ⯈ [29.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6", $seg-out="5efc466ae9 v4:v5 6")
+ ⯈ [30.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7", $seg-out="5efc466ae9 v4:v5 7")
+ ⯈ [31.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8", $seg-out="5efc466ae9 v4:v5 8")
+ ⯈ [32.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9", $seg-out="5efc466ae9 v4:v5 9")
+ ⯈ [33.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10", $seg-out="5efc466ae9 v4:v5 10")
+ ⯈ [34.1] → #13:
+ ⯈ [35.1] t → #18: t ($del="5efc466ae9 v4:v5 1")
+ ⯈ [36.1] h → #19: h ($del="5efc466ae9 v4:v5 2")
+ ⯈ [37.1] r → #20: r ($del="5efc466ae9 v4:v5 3")
+ ⯈ [38.1] e → #21: e ($del="5efc466ae9 v4:v5 4")
+ ⯈ [39.1] e → #22: e ($del="5efc466ae9 v4:v5 5")
+ ⯈ [40.1] → #23: ($del="5efc466ae9 v4:v5 6")
+ ⯈ [41.1] f → #24: f ($del="5efc466ae9 v4:v5 7")
+ ⯈ [42.1] o → #25: o ($del="5efc466ae9 v4:v5 8")
+ ⯈ [43.1] u → #26: u ($del="5efc466ae9 v4:v5 9")
+ ⯈ [44.1] r → #27: r ($del="5efc466ae9 v4:v5 10")
+ ⯈ [45.1] f → #41: f ($seg-out="980a28378f v2:v3 1", $seg-in="5efc466ae9 v4:v5 1", $seg2-out="5efc466ae9 v4:v5 1")
+ ⯈ [46.1] i → #42: i ($seg-out="980a28378f v2:v3 2", $seg-in="5efc466ae9 v4:v5 2", $seg2-out="5efc466ae9 v4:v5 2")
+ ⯈ [47.1] v → #43: v ($seg-out="980a28378f v2:v3 3", $seg-in="5efc466ae9 v4:v5 3", $seg2-out="5efc466ae9 v4:v5 3")
+ ⯈ [48.1] e → #44: e ($seg-out="980a28378f v2:v3 4", $seg-in="5efc466ae9 v4:v5 4", $seg2-out="5efc466ae9 v4:v5 4")
+ ⯈ [49.1] → #9: ($seg-in="5efc466ae9 v4:v5 5", $seg2-out="5efc466ae9 v4:v5 5")
+ ⯈ [50.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6", $seg2-out="5efc466ae9 v4:v5 6")
+ ⯈ [51.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7", $seg2-out="5efc466ae9 v4:v5 7")
+ ⯈ [52.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8", $seg2-out="5efc466ae9 v4:v5 8")
+ ⯈ [53.1] → #28:
+ ⯈ [54.1] z → #29: z ($del="cbdd5bf924 v5:v6 1")
+ ⯈ [55.1] e → #30: e ($del="cbdd5bf924 v5:v6 2")
+ ⯈ [56.1] r → #31: r ($del="cbdd5bf924 v5:v6 3")
- ■ [57.1] o → #32: o ($del="cbdd5bf924 v5:v6 4")
(3) v3 (delete ten_
): ten_
is restored after six
and before three four
. Note that here the builder makes an adjustment to the position of the restored segment. According to its metadata, it should be placed before node 24.1 #18 (after six
and before three
); but this would break the segments pair built by the implicit coupling of the two segments of a replacement:
- the deleted segment
five six
(deletion here is part of swapping); - the inserted segment
three four
.
So, an adjustment is defined which, when the reference node has $seg-out
feature(s) with the same operation as the $del
features of the previous node, the reference head node becomes the first node past the $seg-out
segment (and after space nodes): here, this is 39.1 #18. This avoids a later rendition of subst
where the del
/ins
pair would be split by a restored <del>ten </del>
.
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="cbdd5bf924 v5:v6 1", $seg-out="cbdd5bf924 v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="cbdd5bf924 v5:v6 2", $seg-out="cbdd5bf924 v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="cbdd5bf924 v5:v6 3", $seg-out="cbdd5bf924 v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="cbdd5bf924 v5:v6 4", $seg-out="cbdd5bf924 v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="27140c3f3c v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="cbdd5bf924 v5:v6", $anchor="27140c3f3c v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="dc328266f2 v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="dc328266f2 v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="dc328266f2 v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="dc328266f2 v0:v1 4")
+ ⯈ [16.1] f → #41: f ($del="5efc466ae9 v4:v5 1")
+ ⯈ [17.1] i → #42: i ($del="5efc466ae9 v4:v5 2")
+ ⯈ [18.1] v → #43: v ($del="5efc466ae9 v4:v5 3")
+ ⯈ [19.1] e → #44: e ($del="5efc466ae9 v4:v5 4")
+ ⯈ [20.1] → #9: ($del="5efc466ae9 v4:v5 5")
+ ⯈ [21.1] s → #10: s ($del="5efc466ae9 v4:v5 6")
+ ⯈ [22.1] i → #11: i ($del="5efc466ae9 v4:v5 7")
+ ⯈ [23.1] x → #12: x ($del="5efc466ae9 v4:v5 8")
+ ⯈ [24.1] t → #18: t ($seg2-in="5efc466ae9 v4:v5 1", $seg-out="5efc466ae9 v4:v5 1")
+ ⯈ [25.1] h → #19: h ($seg2-in="5efc466ae9 v4:v5 2", $seg-out="5efc466ae9 v4:v5 2")
+ ⯈ [26.1] r → #20: r ($seg2-in="5efc466ae9 v4:v5 3", $seg-out="5efc466ae9 v4:v5 3")
+ ⯈ [27.1] e → #21: e ($seg2-in="5efc466ae9 v4:v5 4", $seg-out="5efc466ae9 v4:v5 4")
+ ⯈ [28.1] e → #22: e ($seg2-in="5efc466ae9 v4:v5 5", $seg-out="5efc466ae9 v4:v5 5")
+ ⯈ [29.1] → #23: ($seg2-in="5efc466ae9 v4:v5 6", $seg-out="5efc466ae9 v4:v5 6")
+ ⯈ [30.1] f → #24: f ($seg2-in="5efc466ae9 v4:v5 7", $seg-out="5efc466ae9 v4:v5 7")
+ ⯈ [31.1] o → #25: o ($seg2-in="5efc466ae9 v4:v5 8", $seg-out="5efc466ae9 v4:v5 8")
+ ⯈ [32.1] u → #26: u ($seg2-in="5efc466ae9 v4:v5 9", $seg-out="5efc466ae9 v4:v5 9")
+ ⯈ [33.1] r → #27: r ($seg2-in="5efc466ae9 v4:v5 10", $seg-out="5efc466ae9 v4:v5 10")
+ ⯈ [34.1] → #13:
+ ⯈ [35.1] t → #14: t ($del="196de059bf v3:v4 1")
+ ⯈ [36.1] e → #15: e ($del="196de059bf v3:v4 2")
+ ⯈ [37.1] n → #16: n ($del="196de059bf v3:v4 3")
+ ⯈ [38.1] → #17: ($del="196de059bf v3:v4 4")
+ ⯈ [39.1] t → #18: t ($del="5efc466ae9 v4:v5 1")
+ ⯈ [40.1] h → #19: h ($del="5efc466ae9 v4:v5 2")
+ ⯈ [41.1] r → #20: r ($del="5efc466ae9 v4:v5 3")
+ ⯈ [42.1] e → #21: e ($del="5efc466ae9 v4:v5 4")
+ ⯈ [43.1] e → #22: e ($del="5efc466ae9 v4:v5 5")
+ ⯈ [44.1] → #23: ($del="5efc466ae9 v4:v5 6")
+ ⯈ [45.1] f → #24: f ($del="5efc466ae9 v4:v5 7")
+ ⯈ [46.1] o → #25: o ($del="5efc466ae9 v4:v5 8")
+ ⯈ [47.1] u → #26: u ($del="5efc466ae9 v4:v5 9")
+ ⯈ [48.1] r → #27: r ($del="5efc466ae9 v4:v5 10")
+ ⯈ [49.1] f → #41: f ($seg-out="980a28378f v2:v3 1", $seg-in="5efc466ae9 v4:v5 1", $seg2-out="5efc466ae9 v4:v5 1")
+ ⯈ [50.1] i → #42: i ($seg-out="980a28378f v2:v3 2", $seg-in="5efc466ae9 v4:v5 2", $seg2-out="5efc466ae9 v4:v5 2")
+ ⯈ [51.1] v → #43: v ($seg-out="980a28378f v2:v3 3", $seg-in="5efc466ae9 v4:v5 3", $seg2-out="5efc466ae9 v4:v5 3")
+ ⯈ [52.1] e → #44: e ($seg-out="980a28378f v2:v3 4", $seg-in="5efc466ae9 v4:v5 4", $seg2-out="5efc466ae9 v4:v5 4")
+ ⯈ [53.1] → #9: ($seg-in="5efc466ae9 v4:v5 5", $seg2-out="5efc466ae9 v4:v5 5")
+ ⯈ [54.1] s → #10: s ($seg-in="5efc466ae9 v4:v5 6", $seg2-out="5efc466ae9 v4:v5 6")
+ ⯈ [55.1] i → #11: i ($seg-in="5efc466ae9 v4:v5 7", $seg2-out="5efc466ae9 v4:v5 7")
+ ⯈ [56.1] x → #12: x ($seg-in="5efc466ae9 v4:v5 8", $seg2-out="5efc466ae9 v4:v5 8")
+ ⯈ [57.1] → #28:
+ ⯈ [58.1] z → #29: z ($del="cbdd5bf924 v5:v6 1")
+ ⯈ [59.1] e → #30: e ($del="cbdd5bf924 v5:v6 2")
+ ⯈ [60.1] r → #31: r ($del="cbdd5bf924 v5:v6 3")
- ■ [61.1] o → #32: o ($del="cbdd5bf924 v5:v6 4")
(4) v2 (replace Five
with five
): Five
nodes are restored before five
:
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="f92da3d45b v5:v6 1", $seg-out="f92da3d45b v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="f92da3d45b v5:v6 2", $seg-out="f92da3d45b v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="f92da3d45b v5:v6 3", $seg-out="f92da3d45b v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="f92da3d45b v5:v6 4", $seg-out="f92da3d45b v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="4d523ffe80 v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="f92da3d45b v5:v6", $anchor="4d523ffe80 v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="3000a2997e v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="3000a2997e v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="3000a2997e v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="3000a2997e v0:v1 4")
+ ⯈ [16.1] f → #41: f ($del="13765c894f v4:v5 1")
+ ⯈ [17.1] i → #42: i ($del="13765c894f v4:v5 2")
+ ⯈ [18.1] v → #43: v ($del="13765c894f v4:v5 3")
+ ⯈ [19.1] e → #44: e ($del="13765c894f v4:v5 4")
+ ⯈ [20.1] → #9: ($del="13765c894f v4:v5 5")
+ ⯈ [21.1] s → #10: s ($del="13765c894f v4:v5 6")
+ ⯈ [22.1] i → #11: i ($del="13765c894f v4:v5 7")
+ ⯈ [23.1] x → #12: x ($del="13765c894f v4:v5 8")
+ ⯈ [24.1] t → #18: t ($seg2-in="13765c894f v4:v5 1", $seg-out="13765c894f v4:v5 1")
+ ⯈ [25.1] h → #19: h ($seg2-in="13765c894f v4:v5 2", $seg-out="13765c894f v4:v5 2")
+ ⯈ [26.1] r → #20: r ($seg2-in="13765c894f v4:v5 3", $seg-out="13765c894f v4:v5 3")
+ ⯈ [27.1] e → #21: e ($seg2-in="13765c894f v4:v5 4", $seg-out="13765c894f v4:v5 4")
+ ⯈ [28.1] e → #22: e ($seg2-in="13765c894f v4:v5 5", $seg-out="13765c894f v4:v5 5")
+ ⯈ [29.1] → #23: ($seg2-in="13765c894f v4:v5 6", $seg-out="13765c894f v4:v5 6")
+ ⯈ [30.1] f → #24: f ($seg2-in="13765c894f v4:v5 7", $seg-out="13765c894f v4:v5 7")
+ ⯈ [31.1] o → #25: o ($seg2-in="13765c894f v4:v5 8", $seg-out="13765c894f v4:v5 8")
+ ⯈ [32.1] u → #26: u ($seg2-in="13765c894f v4:v5 9", $seg-out="13765c894f v4:v5 9")
+ ⯈ [33.1] r → #27: r ($seg2-in="13765c894f v4:v5 10", $seg-out="13765c894f v4:v5 10")
+ ⯈ [34.1] → #13:
+ ⯈ [35.1] t → #14: t ($del="8fc6b83c48 v3:v4 1")
+ ⯈ [36.1] e → #15: e ($del="8fc6b83c48 v3:v4 2")
+ ⯈ [37.1] n → #16: n ($del="8fc6b83c48 v3:v4 3")
+ ⯈ [38.1] → #17: ($del="8fc6b83c48 v3:v4 4")
+ ⯈ [39.1] t → #18: t ($del="13765c894f v4:v5 1")
+ ⯈ [40.1] h → #19: h ($del="13765c894f v4:v5 2")
+ ⯈ [41.1] r → #20: r ($del="13765c894f v4:v5 3")
+ ⯈ [42.1] e → #21: e ($del="13765c894f v4:v5 4")
+ ⯈ [43.1] e → #22: e ($del="13765c894f v4:v5 5")
+ ⯈ [44.1] → #23: ($del="13765c894f v4:v5 6")
+ ⯈ [45.1] f → #24: f ($del="13765c894f v4:v5 7")
+ ⯈ [46.1] o → #25: o ($del="13765c894f v4:v5 8")
+ ⯈ [47.1] u → #26: u ($del="13765c894f v4:v5 9")
+ ⯈ [48.1] r → #27: r ($del="13765c894f v4:v5 10")
+ ⯈ [49.1] F → #37: F ($del="089ef22b95 v2:v3 1")
+ ⯈ [50.1] i → #38: i ($del="089ef22b95 v2:v3 2")
+ ⯈ [51.1] v → #39: v ($del="089ef22b95 v2:v3 3")
+ ⯈ [52.1] e → #40: e ($del="089ef22b95 v2:v3 4")
+ ⯈ [53.1] f → #41: f ($seg-out="089ef22b95 v2:v3 1", $seg-in="13765c894f v4:v5 1", $seg2-out="13765c894f v4:v5 1")
+ ⯈ [54.1] i → #42: i ($seg-out="089ef22b95 v2:v3 2", $seg-in="13765c894f v4:v5 2", $seg2-out="13765c894f v4:v5 2")
+ ⯈ [55.1] v → #43: v ($seg-out="089ef22b95 v2:v3 3", $seg-in="13765c894f v4:v5 3", $seg2-out="13765c894f v4:v5 3")
+ ⯈ [56.1] e → #44: e ($seg-out="089ef22b95 v2:v3 4", $seg-in="13765c894f v4:v5 4", $seg2-out="13765c894f v4:v5 4")
+ ⯈ [57.1] → #9: ($seg-in="13765c894f v4:v5 5", $seg2-out="13765c894f v4:v5 5")
+ ⯈ [58.1] s → #10: s ($seg-in="13765c894f v4:v5 6", $seg2-out="13765c894f v4:v5 6")
+ ⯈ [59.1] i → #11: i ($seg-in="13765c894f v4:v5 7", $seg2-out="13765c894f v4:v5 7")
+ ⯈ [60.1] x → #12: x ($seg-in="13765c894f v4:v5 8", $seg2-out="13765c894f v4:v5 8")
+ ⯈ [61.1] → #28:
+ ⯈ [62.1] z → #29: z ($del="f92da3d45b v5:v6 1")
+ ⯈ [63.1] e → #30: e ($del="f92da3d45b v5:v6 2")
+ ⯈ [64.1] r → #31: r ($del="f92da3d45b v5:v6 3")
- ■ [65.1] o → #32: o ($del="f92da3d45b v5:v6 4")
(5) v1 (replace FIVE
with Five
): FIVE
nodes are restored before Five
:
+ ⯈ [2.2] → (sub-id=v7, version=beta)
+ ⯈ [3.1] z → #29: z ($seg-in="f92da3d45b v5:v6 1", $seg-out="f92da3d45b v5:v6 1")
+ ⯈ [4.1] e → #30: e ($seg-in="f92da3d45b v5:v6 2", $seg-out="f92da3d45b v5:v6 2")
+ ⯈ [5.1] r → #31: r ($seg-in="f92da3d45b v5:v6 3", $seg-out="f92da3d45b v5:v6 3")
+ ⯈ [6.1] o → #32: o ($seg-in="f92da3d45b v5:v6 4", $seg-out="f92da3d45b v5:v6 4")
+ ⯈ [7.1] → #45: ($seg-out="4d523ffe80 v6:v7 1")
+ ⯈ [8.1] o → #1: o ($anchor="f92da3d45b v5:v6", $anchor="4d523ffe80 v6:v7")
+ ⯈ [9.1] n → #2: n
+ ⯈ [10.1] e → #3: e
+ ⯈ [11.1] → #4:
+ ⯈ [12.1] t → #33: t ($seg-out="3000a2997e v0:v1 1")
+ ⯈ [13.1] w → #34: w ($seg-out="3000a2997e v0:v1 2")
+ ⯈ [14.1] o → #35: o ($seg-out="3000a2997e v0:v1 3")
+ ⯈ [15.1] → #36: ($seg-out="3000a2997e v0:v1 4")
+ ⯈ [16.1] f → #41: f ($del="13765c894f v4:v5 1")
+ ⯈ [17.1] i → #42: i ($del="13765c894f v4:v5 2")
+ ⯈ [18.1] v → #43: v ($del="13765c894f v4:v5 3")
+ ⯈ [19.1] e → #44: e ($del="13765c894f v4:v5 4")
+ ⯈ [20.1] → #9: ($del="13765c894f v4:v5 5")
+ ⯈ [21.1] s → #10: s ($del="13765c894f v4:v5 6")
+ ⯈ [22.1] i → #11: i ($del="13765c894f v4:v5 7")
+ ⯈ [23.1] x → #12: x ($del="13765c894f v4:v5 8")
+ ⯈ [24.1] t → #18: t ($seg2-in="13765c894f v4:v5 1", $seg-out="13765c894f v4:v5 1")
+ ⯈ [25.1] h → #19: h ($seg2-in="13765c894f v4:v5 2", $seg-out="13765c894f v4:v5 2")
+ ⯈ [26.1] r → #20: r ($seg2-in="13765c894f v4:v5 3", $seg-out="13765c894f v4:v5 3")
+ ⯈ [27.1] e → #21: e ($seg2-in="13765c894f v4:v5 4", $seg-out="13765c894f v4:v5 4")
+ ⯈ [28.1] e → #22: e ($seg2-in="13765c894f v4:v5 5", $seg-out="13765c894f v4:v5 5")
+ ⯈ [29.1] → #23: ($seg2-in="13765c894f v4:v5 6", $seg-out="13765c894f v4:v5 6")
+ ⯈ [30.1] f → #24: f ($seg2-in="13765c894f v4:v5 7", $seg-out="13765c894f v4:v5 7")
+ ⯈ [31.1] o → #25: o ($seg2-in="13765c894f v4:v5 8", $seg-out="13765c894f v4:v5 8")
+ ⯈ [32.1] u → #26: u ($seg2-in="13765c894f v4:v5 9", $seg-out="13765c894f v4:v5 9")
+ ⯈ [33.1] r → #27: r ($seg2-in="13765c894f v4:v5 10", $seg-out="13765c894f v4:v5 10")
+ ⯈ [34.1] → #13:
+ ⯈ [35.1] t → #14: t ($del="8fc6b83c48 v3:v4 1")
+ ⯈ [36.1] e → #15: e ($del="8fc6b83c48 v3:v4 2")
+ ⯈ [37.1] n → #16: n ($del="8fc6b83c48 v3:v4 3")
+ ⯈ [38.1] → #17: ($del="8fc6b83c48 v3:v4 4")
+ ⯈ [39.1] t → #18: t ($del="13765c894f v4:v5 1")
+ ⯈ [40.1] h → #19: h ($del="13765c894f v4:v5 2")
+ ⯈ [41.1] r → #20: r ($del="13765c894f v4:v5 3")
+ ⯈ [42.1] e → #21: e ($del="13765c894f v4:v5 4")
+ ⯈ [43.1] e → #22: e ($del="13765c894f v4:v5 5")
+ ⯈ [44.1] → #23: ($del="13765c894f v4:v5 6")
+ ⯈ [45.1] f → #24: f ($del="13765c894f v4:v5 7")
+ ⯈ [46.1] o → #25: o ($del="13765c894f v4:v5 8")
+ ⯈ [47.1] u → #26: u ($del="13765c894f v4:v5 9")
+ ⯈ [48.1] r → #27: r ($del="13765c894f v4:v5 10")
+ ⯈ [49.1] F → #5: F ($del="43c7bd7748 v1:v2 1")
+ ⯈ [50.1] I → #6: I ($del="43c7bd7748 v1:v2 2")
+ ⯈ [51.1] V → #7: V ($del="43c7bd7748 v1:v2 3")
+ ⯈ [52.1] E → #8: E ($del="43c7bd7748 v1:v2 4")
+ ⯈ [53.1] F → #37: F ($del="089ef22b95 v2:v3 1")
+ ⯈ [54.1] i → #38: i ($del="089ef22b95 v2:v3 2")
+ ⯈ [55.1] v → #39: v ($del="089ef22b95 v2:v3 3")
+ ⯈ [56.1] e → #40: e ($del="089ef22b95 v2:v3 4")
+ ⯈ [57.1] f → #41: f ($seg-out="089ef22b95 v2:v3 1", $seg-in="13765c894f v4:v5 1", $seg2-out="13765c894f v4:v5 1")
+ ⯈ [58.1] i → #42: i ($seg-out="089ef22b95 v2:v3 2", $seg-in="13765c894f v4:v5 2", $seg2-out="13765c894f v4:v5 2")
+ ⯈ [59.1] v → #43: v ($seg-out="089ef22b95 v2:v3 3", $seg-in="13765c894f v4:v5 3", $seg2-out="13765c894f v4:v5 3")
+ ⯈ [60.1] e → #44: e ($seg-out="089ef22b95 v2:v3 4", $seg-in="13765c894f v4:v5 4", $seg2-out="13765c894f v4:v5 4")
+ ⯈ [61.1] → #9: ($seg-in="13765c894f v4:v5 5", $seg2-out="13765c894f v4:v5 5")
+ ⯈ [62.1] s → #10: s ($seg-in="13765c894f v4:v5 6", $seg2-out="13765c894f v4:v5 6")
+ ⯈ [63.1] i → #11: i ($seg-in="13765c894f v4:v5 7", $seg2-out="13765c894f v4:v5 7")
+ ⯈ [64.1] x → #12: x ($seg-in="13765c894f v4:v5 8", $seg2-out="13765c894f v4:v5 8")
+ ⯈ [65.1] → #28:
+ ⯈ [66.1] z → #29: z ($del="f92da3d45b v5:v6 1")
+ ⯈ [67.1] e → #30: e ($del="f92da3d45b v5:v6 2")
+ ⯈ [68.1] r → #31: r ($del="f92da3d45b v5:v6 3")
- ■ [69.1] o → #32: o ($del="f92da3d45b v5:v6 4")
The v7 rendered output is (with manually added indentation):
<lem>
<mod n="v7">
<!--⯈ [3.1] zero #2-->
<ins source="f92da3d45b 29×4>[1@zero">zero</ins>
<!--⯈ [4.1] #3-->
<ins source="4d523ffe80 1×0+[" "@zero [*version^:=beta]"> </ins>
<!--⯈ [5.1] one #4-->one <!--⯈ [6.1] two #5-->
<ins source="3000a2997e 5×0+["two "">two </ins>
<!--⯈ [7.1] five six #6-->
<subst source="13765c894f @8×8<>17x10">
<del source="13765c894f @8×8<>17x10">five six</del>
<ins source="13765c894f @8×8<>17x10"><!--⯈ [8.1] three four #7-->three four</ins>
</subst>
<!--⯈ [9.1] #8-->
<!--⯈ [10.1] ten #9-->
<del source="8fc6b83c48 14×4- [*version^:=alpha]">ten </del>
<!--⯈ [11.1] three four #10-->
<subst source="13765c894f @8×8<>17x10">
<del source="13765c894f @8×8<>17x10">three four</del>
<ins source="13765c894f @8×8<>17x10">
<!--⯈ [12.1] FIVE #11-->
<subst source="43c7bd7748 5×4="Five"">
<del source="43c7bd7748 5×4="Five"">FIVE</del>
<ins source="43c7bd7748 5×4="Five"">
<!--⯈ [13.1] Five #12-->
<subst source="089ef22b95 37×4="five"">
<del source="089ef22b95 37×4="five"">Five</del>
<ins source="089ef22b95 37×4="five""><!--⯈ [14.1] five #13-->five</ins>
</subst>
<!--⯈ [15.1] six #14--> six
</ins>
</subst>
<!--⯈ [16.1] #15-->
</ins>
</subst>
<!--■ [17.1] zero #16-->
<del source="f92da3d45b 29×4>[1@zero">zero</del>
</mod>
</lem>
If we represent the deleted text between {}
, the inserted text between []
, and subst
text between ()
the result is:
[zero][ ]one [two ]({five six}[three four]) {ten }({three four}[({FIVE}[({Five}[five]) six])]){zero}
This is the full output of the renderer, without any manual changes:
<app>
<rdg>
<mod n="v4">
<!--⯈ [3.1] one #2-->one <!--⯈ [4.1] two #3--><ins source="3000a2997e 5×0+["two "">two </ins><!--⯈ [5.1] FIVE #4--><subst source="43c7bd7748 5×4="Five""><del source="43c7bd7748 5×4="Five"">FIVE</del><ins source="43c7bd7748 5×4="Five""><!--⯈ [6.1] Five #5--><subst source="089ef22b95 37×4="five""><del source="089ef22b95 37×4="five"">Five</del><ins source="089ef22b95 37×4="five""><!--⯈ [7.1] five #6-->five</ins></subst><!--⯈ [8.1] six #7--></ins></subst> six <!--⯈ [9.1] ten #8--><del source="8fc6b83c48 14×4- [*version^:=alpha]">ten </del><!--■ [10.1] three four zero #9-->three four zero</mod>
</rdg>
<lem>
<mod n="v7">
<!--⯈ [3.1] zero #2-->
<ins source="f92da3d45b 29×4>[1@zero">zero</ins>
<!--⯈ [4.1] #3-->
<ins source="4d523ffe80 1×0+[" "@zero [*version^:=beta]"> </ins>
<!--⯈ [5.1] one #4-->one <!--⯈ [6.1] two #5--><ins source="3000a2997e 5×0+["two "">two </ins><!--⯈ [7.1] five six #6--><subst source="13765c894f @8×8<>17x10"><del source="13765c894f @8×8<>17x10">five six</del><ins source="13765c894f @8×8<>17x10"><!--⯈ [8.1] three four #7-->three four</ins></subst><!--⯈ [9.1] #8--> <!--⯈ [10.1] ten #9--><del source="8fc6b83c48 14×4- [*version^:=alpha]">ten </del><!--⯈ [11.1] three four #10--><subst source="13765c894f @8×8<>17x10"><del source="13765c894f @8×8<>17x10">three four</del><ins source="13765c894f @8×8<>17x10"><!--⯈ [12.1] FIVE #11--><subst source="43c7bd7748 5×4="Five""><del source="43c7bd7748 5×4="Five"">FIVE</del><ins source="43c7bd7748 5×4="Five""><!--⯈ [13.1] Five #12--><subst source="089ef22b95 37×4="five""><del source="089ef22b95 37×4="five"">Five</del><ins source="089ef22b95 37×4="five""><!--⯈ [14.1] five #13-->five</ins></subst><!--⯈ [15.1] six #14--> six</ins></subst><!--⯈ [16.1] #15--></ins></subst> <!--■ [17.1] zero #16--><del source="f92da3d45b 29×4>[1@zero">zero</del></mod>
</lem>
</app>
